Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息

作者：VEPHP   時間 2017-09-27

《Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息》要點：
本文介紹了Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息，希望對您有用。如果有疑問，可以聯系我們。

接著上篇文章《解析SQL 表結構信息查詢 含主外鍵、自增長》里面提到了INFORMATION_SCHEMA視圖,其實到了SQL 2005微軟都主推大家使用INFORMATION_SCHEMA系統視圖,而不是在使用sys東東了,當然目前還是有許多信息只能通過sys視圖來查詢.這里我們還是以查詢表結果信息為例來說明一些主要的INFORMATION_SCHEMA視圖的使用.
首先我們需要查詢列的信息,這需要用到[INFORMATION_SCHEMA].[COLUMNS]系統視圖來查詢數據列的信息,SQL 如下：
代碼如下:

SELECT? c.TABLE_SCHEMA ,
??????? c.TABLE_NAME ,
??????? c.COLUMN_NAME ,
??????? c.DATA_TYPE ,
??????? c.CHARACTER_MAXIMUM_LENGTH ,
??????? c.COLUMN_DEFAULT ,
??????? c.IS_NULLABLE ,
??????? c.NUMERIC_PRECISION ,
??????? c.NUMERIC_SCALE
FROM??? [INFORMATION_SCHEMA].[COLUMNS] c
WHERE?? TABLE_NAME = 'Address'

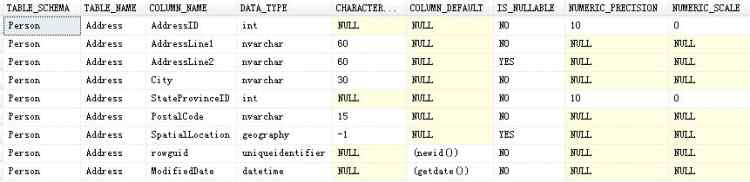

運行結果如下：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息
我們都知道我們在定義列的時候一般的使用都是varchar(50)之類的信息,這里我們需要整合DATA_TYPE和CHARACTER_MAXIMUM_LENGTH信息,當CHARACTER_MAXIMUM_LENGTH為-1時即使說沒有指定具體最大長度,數據的指定長度信息是max,而numeric需要整合NUMERIC_PRECISION、NUMERIC_SCALE信息.修改后的SQL如下：
代碼如下:

SELECT? c.TABLE_SCHEMA ,
??????? c.TABLE_NAME ,
??????? c.COLUMN_NAME ,
??????? CASE WHEN ( ( CHARINDEX('char', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH <> -1
????????????????? )
???????????? THEN c.DATA_TYPE + '('
????????????????? + CAST(c.CHARACTER_MAXIMUM_LENGTH AS VARCHAR(4)) + ')'
???????????? WHEN ( ( CHARINDEX('CHAR', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH = -1
????????????????? ) THEN c.DATA_TYPE + '(max)'
???????????? WHEN ( CHARINDEX('numeric', c.DATA_TYPE) > 0 )
???????????? THEN c.DATA_TYPE + '(' + CAST(c.NUMERIC_PRECISION AS VARCHAR(4))
????????????????? + ',' + CAST(c.NUMERIC_SCALE AS VARCHAR(4)) + ')'
???????????? ELSE c.DATA_TYPE
??????? END AS DATA_TYPE ,
??????? c.COLUMN_DEFAULT ,
??????? c.IS_NULLABLE ,
??????? c.COLUMN_DEFAULT
FROM??? [INFORMATION_SCHEMA].[COLUMNS] c
WHERE?? TABLE_NAME = 'Address'
ORDER BY c.ORDINAL_POSITION

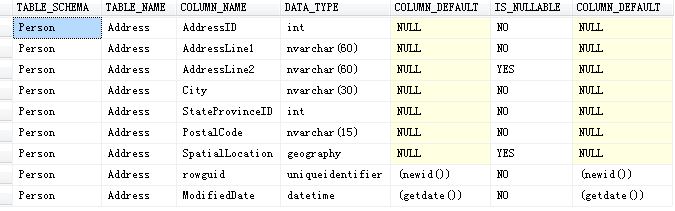

運行結果如圖：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息

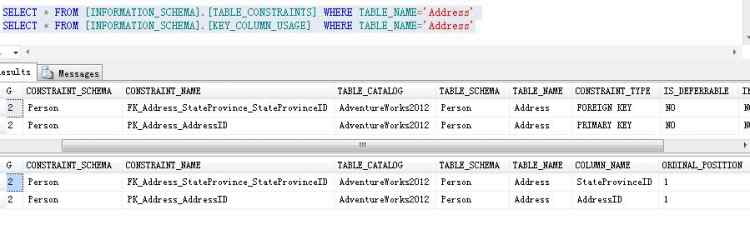

現在我們需要標記這張表的那些列是主鍵,那些列是外鍵,要查詢表的主、外鍵信息需要用到[INFORMATION_SCHEMA].[TABLE_CONSTRAINTS]和[INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] 系統視圖
運行結果如圖：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息
修改我們先前的SQL語句：
代碼如下:

SELECT? c.TABLE_SCHEMA ,
??????? c.TABLE_NAME ,
??????? c.COLUMN_NAME ,
??????? CASE WHEN ( ( CHARINDEX('char', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH <> -1
????????????????? )
???????????? THEN c.DATA_TYPE + '('
????????????????? + CAST(c.CHARACTER_MAXIMUM_LENGTH AS VARCHAR(4)) + ')'
???????????? WHEN ( ( CHARINDEX('CHAR', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH = -1
????????????????? ) THEN c.DATA_TYPE + '(max)'
???????????? WHEN ( CHARINDEX('numeric', c.DATA_TYPE) > 0 )
???????????? THEN c.DATA_TYPE + '(' + CAST(c.NUMERIC_PRECISION AS VARCHAR(4))
????????????????? + ',' + CAST(c.NUMERIC_SCALE AS VARCHAR(4)) + ')'
???????????? ELSE c.DATA_TYPE
??????? END AS DATA_TYPE ,
??????? c.COLUMN_DEFAULT ,
??????? c.IS_NULLABLE ,
??????? c.COLUMN_DEFAULT ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'PRIMARY KEY' THEN 'YES'
???????????? ELSE 'NO'
??????? END AS IS_PRIMARY_KEY ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'FOREIGN KEY' THEN 'YES'
???????????? ELSE 'NO'
??????? END AS IS_FOREIGN_KEY
FROM??? [INFORMATION_SCHEMA].[COLUMNS] c
??????? LEFT JOIN [INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] kcu ON kcu.TABLE_SCHEMA = c.TABLE_SCHEMA
????????????????????????????????????????????????????????????? AND kcu.TABLE_NAME = c.TABLE_NAME
????????????????????????????????????????????????????????????? AND kcu.COLUMN_NAME = c.COLUMN_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[TABLE_CONSTRAINTS] tc ON tc.CONSTRAINT_SCHEMA = kcu.CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND tc.CONSTRAINT_NAME = kcu.CONSTRAINT_NAME
WHERE?? c.TABLE_NAME = 'Address'
ORDER BY c.ORDINAL_POSITION

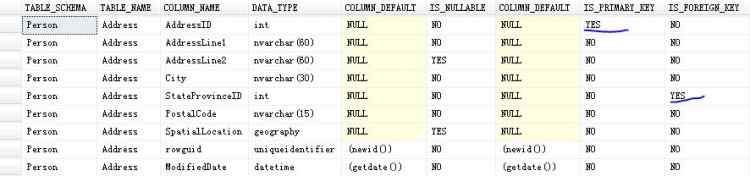

運行結果如圖：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息

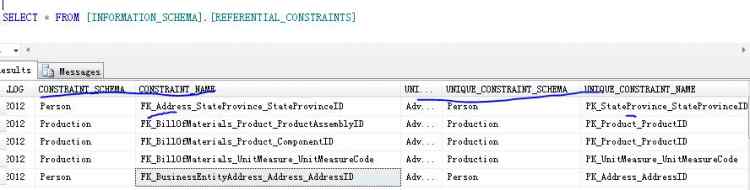

現在我們已經知道那些列是主鍵那些是外鍵,接下來的就是外鍵列所關聯的外檢表信息,這里需要用到[INFORMATION_SCHEMA].[REFERENTIAL_CONSTRAINTS]系統視圖,運行該視圖如下：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息
所以修改我們的SQL如下：
代碼如下:

SELECT? c.TABLE_SCHEMA ,
??????? c.TABLE_NAME ,
??????? c.COLUMN_NAME ,
??????? CASE WHEN ( ( CHARINDEX('char', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH <> -1
????????????????? )
???????????? THEN c.DATA_TYPE + '('
????????????????? + CAST(c.CHARACTER_MAXIMUM_LENGTH AS VARCHAR(4)) + ')'
???????????? WHEN ( ( CHARINDEX('CHAR', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH = -1
????????????????? ) THEN c.DATA_TYPE + '(max)'
???????????? WHEN ( CHARINDEX('numeric', c.DATA_TYPE) > 0 )
???????????? THEN c.DATA_TYPE + '(' + CAST(c.NUMERIC_PRECISION AS VARCHAR(4))
????????????????? + ',' + CAST(c.NUMERIC_SCALE AS VARCHAR(4)) + ')'
???????????? ELSE c.DATA_TYPE
??????? END AS DATA_TYPE ,
??????? c.COLUMN_DEFAULT ,
??????? c.IS_NULLABLE ,
??????? c.COLUMN_DEFAULT ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'PRIMARY KEY' THEN 'YES'
???????????? ELSE 'NO'
??????? END AS IS_PRIMARY_KEY ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'FOREIGN KEY' THEN 'YES'
???????????? ELSE 'NO'
??????? END AS IS_FOREIGN_KEY,
??????? fkcu.COLUMN_NAME AS FOREIGN_KEY,
??????? fkcu.TABLE_NAME AS FOREIGN_TABLE
FROM??? [INFORMATION_SCHEMA].[COLUMNS] c
??????? LEFT JOIN [INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] kcu ON kcu.TABLE_SCHEMA = c.TABLE_SCHEMA
????????????????????????????????????????????????????????????? AND kcu.TABLE_NAME = c.TABLE_NAME
????????????????????????????????????????????????????????????? AND kcu.COLUMN_NAME = c.COLUMN_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[TABLE_CONSTRAINTS] tc ON tc.CONSTRAINT_SCHEMA = kcu.CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND tc.CONSTRAINT_NAME = kcu.CONSTRAINT_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[REFERENTIAL_CONSTRAINTS] fc ON kcu.CONSTRAINT_SCHEMA = fc.CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND kcu.CONSTRAINT_NAME = fc.CONSTRAINT_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] fkcu ON fkcu.CONSTRAINT_SCHEMA = fc.UNIQUE_CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND fkcu.CONSTRAINT_NAME = fc.UNIQUE_CONSTRAINT_NAME
WHERE?? c.TABLE_NAME = 'Address'
ORDER BY c.ORDINAL_POSITION

運行結果如圖：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息
我們的查詢結果中顯示了太多的NULL,看著不怎么舒服,還有我們的表名應該顯示一次就可以,修改SQL如下：
代碼如下:

SELECT? CASE WHEN c.ORDINAL_POSITION = 1
???????????? THEN c.TABLE_SCHEMA + '.' + c.TABLE_NAME
???????????? ELSE ''
??????? END AS TABLE_NAME ,
??????? c.COLUMN_NAME ,
??????? CASE WHEN ( ( CHARINDEX('char', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH <> -1
????????????????? )
???????????? THEN c.DATA_TYPE + '('
????????????????? + CAST(c.CHARACTER_MAXIMUM_LENGTH AS VARCHAR(4)) + ')'
???????????? WHEN ( ( CHARINDEX('CHAR', c.DATA_TYPE) > 0
????????????????????? OR CHARINDEX('binary', c.DATA_TYPE) > 0
??????????????????? )
??????????????????? AND c.CHARACTER_MAXIMUM_LENGTH = -1
????????????????? ) THEN c.DATA_TYPE + '(max)'
???????????? WHEN ( CHARINDEX('numeric', c.DATA_TYPE) > 0 )
???????????? THEN c.DATA_TYPE + '(' + CAST(c.NUMERIC_PRECISION AS VARCHAR(4))
????????????????? + ',' + CAST(c.NUMERIC_SCALE AS VARCHAR(4)) + ')'
???????????? ELSE c.DATA_TYPE
??????? END AS DATA_TYPE ,
??????? ISNULL(c.COLUMN_DEFAULT, '') AS COLUMN_DEFAULT ,
??????? CASE WHEN c.IS_NULLABLE = 'YES' THEN '√'
???????????? ELSE ''
??????? END IS_NULLABLE ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'PRIMARY KEY' THEN '√'
???????????? ELSE ''
??????? END AS IS_PRIMARY_KEY ,
??????? CASE WHEN tc.CONSTRAINT_TYPE = 'FOREIGN KEY' THEN '√'
???????????? ELSE ''
??????? END AS IS_FOREIGN_KEY ,
??????? ISNULL(fkcu.COLUMN_NAME, '') AS FOREIGN_KEY ,
??????? ISNULL(fkcu.TABLE_NAME, '') AS FOREIGN_TABLE
FROM??? [INFORMATION_SCHEMA].[COLUMNS] c
??????? LEFT JOIN [INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] kcu ON kcu.TABLE_SCHEMA = c.TABLE_SCHEMA
????????????????????????????????????????????????????????????? AND kcu.TABLE_NAME = c.TABLE_NAME
????????????????????????????????????????????????????????????? AND kcu.COLUMN_NAME = c.COLUMN_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[TABLE_CONSTRAINTS] tc ON tc.CONSTRAINT_SCHEMA = kcu.CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND tc.CONSTRAINT_NAME = kcu.CONSTRAINT_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[REFERENTIAL_CONSTRAINTS] fc ON kcu.CONSTRAINT_SCHEMA = fc.CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND kcu.CONSTRAINT_NAME = fc.CONSTRAINT_NAME
??????? LEFT JOIN [INFORMATION_SCHEMA].[KEY_COLUMN_USAGE] fkcu ON fkcu.CONSTRAINT_SCHEMA = fc.UNIQUE_CONSTRAINT_SCHEMA
????????????????????????????????????????????????????????????? AND fkcu.CONSTRAINT_NAME = fc.UNIQUE_CONSTRAINT_NAME
WHERE?? c.TABLE_NAME = 'Address'
ORDER BY c.ORDINAL_POSITION

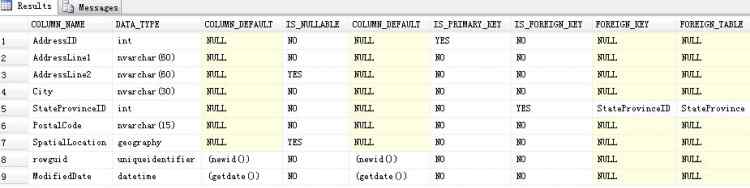

運行結果如圖：
Mysql必讀探討SQL利用INFORMATION_SCHEMA系統視圖如何獲取表的主外鍵信息
有不對的地方還請大家拍磚!
